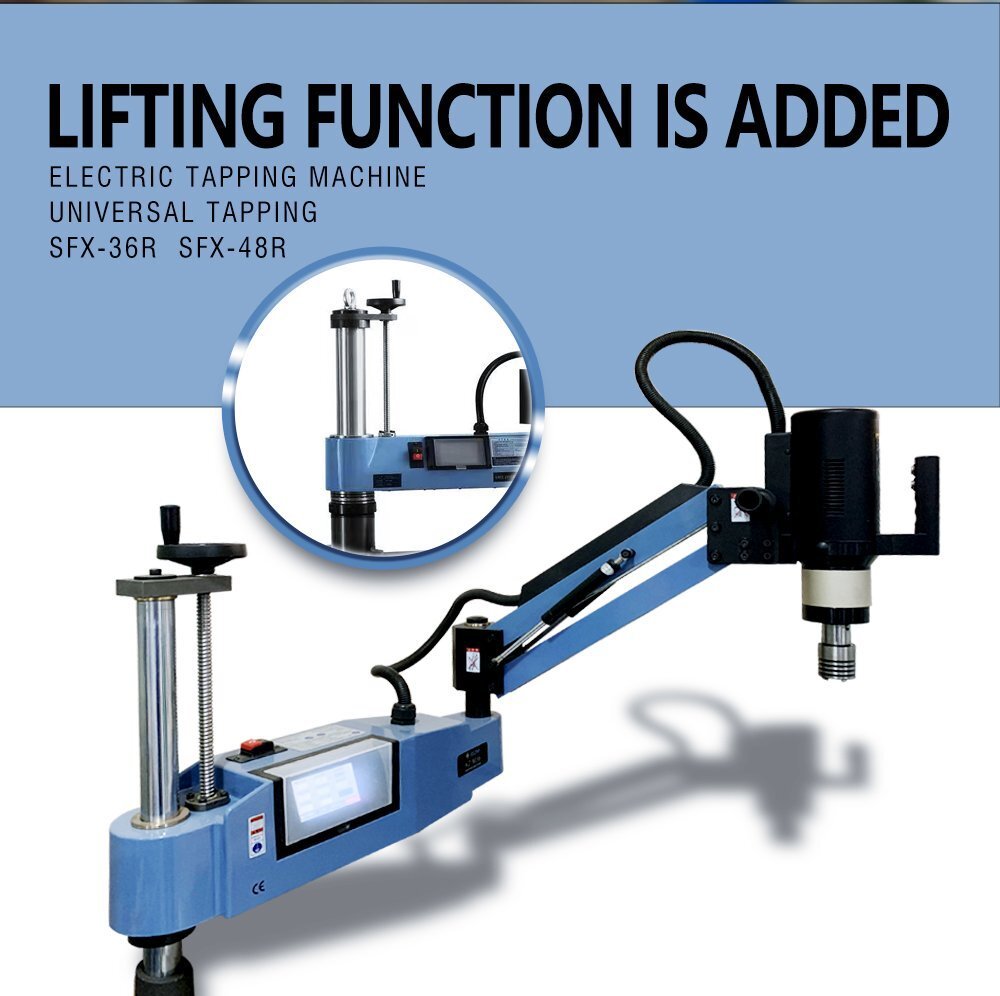

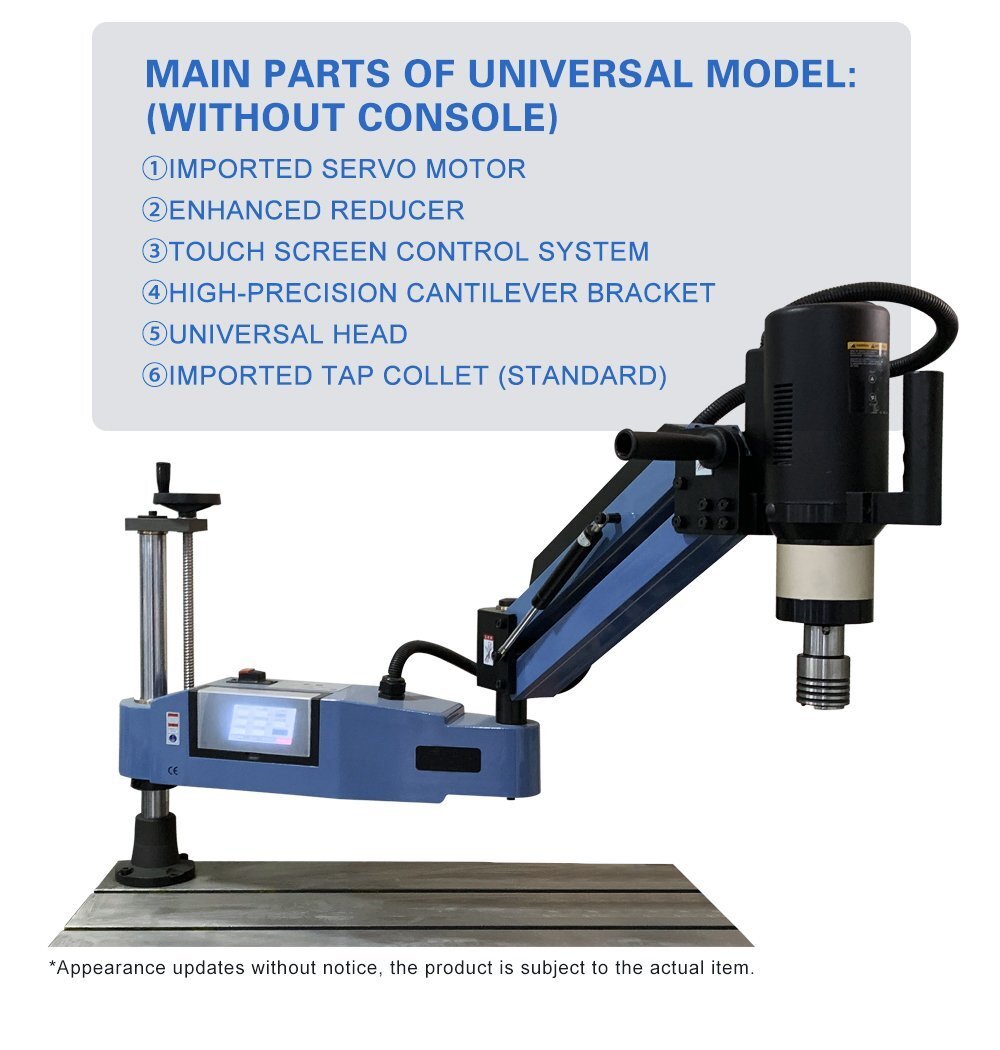

SFX Electric Tapping Machine Arm M12-M48 Universal Electric Tapper 360° Flexible Tapping Arm with Lifting Function SFX-M48R

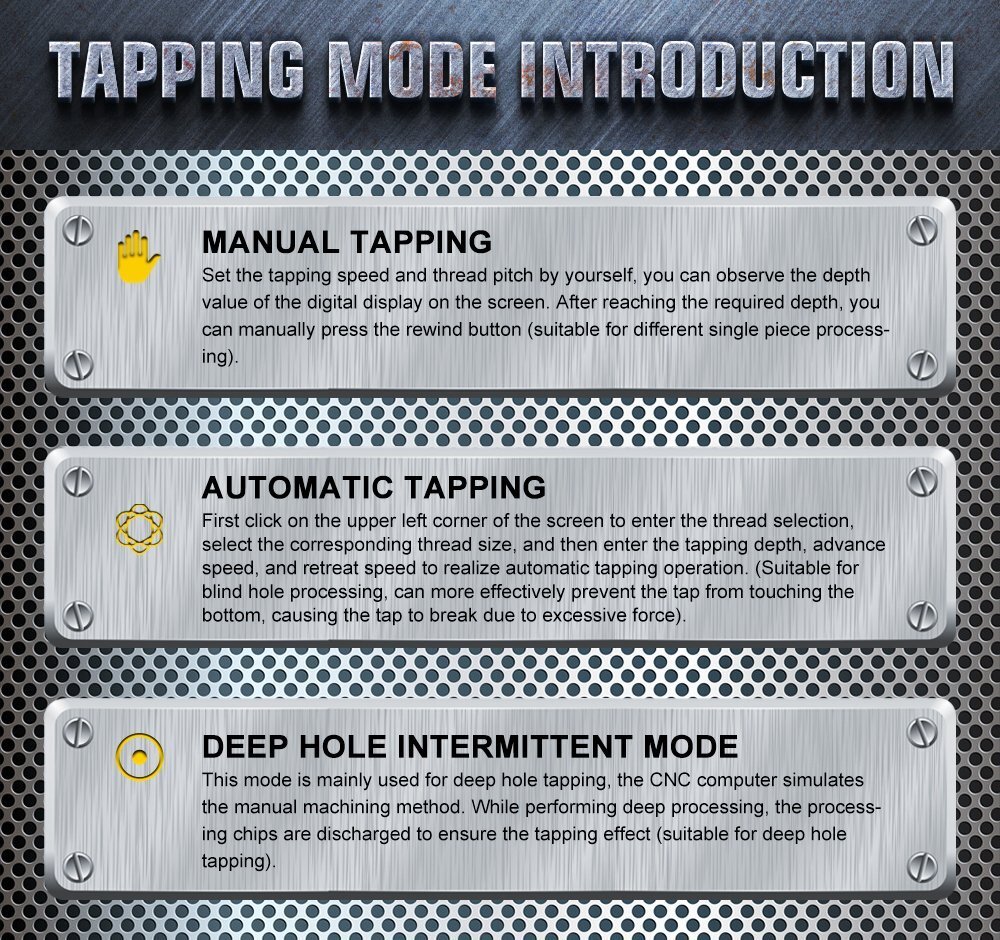

The electric tapping arms offer fast tapping speeds and an easy operation for threading. It is reliable and needs little maintenance. There are 3 operating modes for you to choose from for different threading needs. M48R electric tapping machine can used for M12-M48 threading.

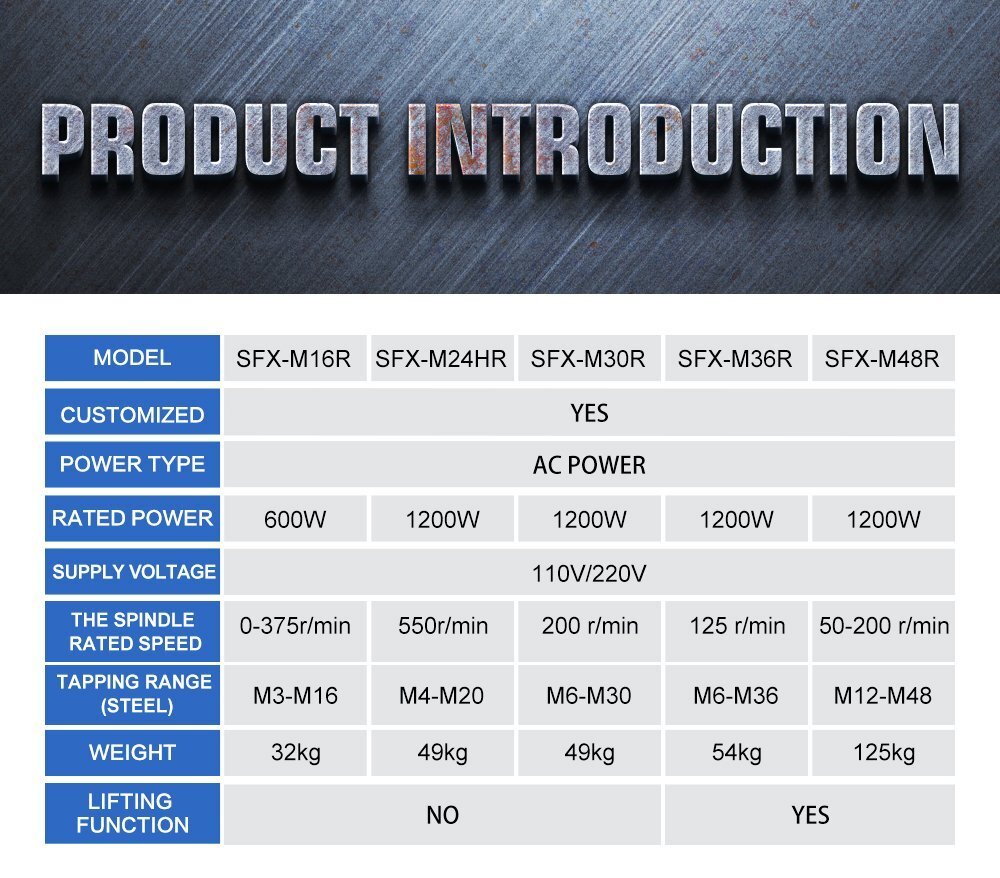

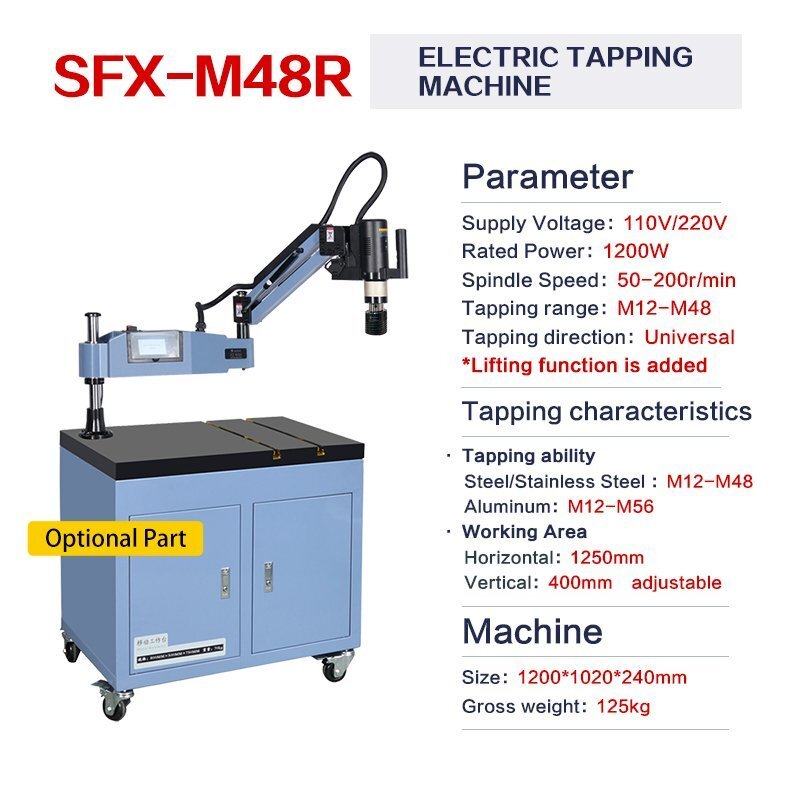

Product name: Electric tapping machine
Model: SFX-M48R
Voltage: 110V/220V
Power: 1200W
Tapping range: M12-M56 for Aluminum; M12-M48 for Steel and Stainless Steel.

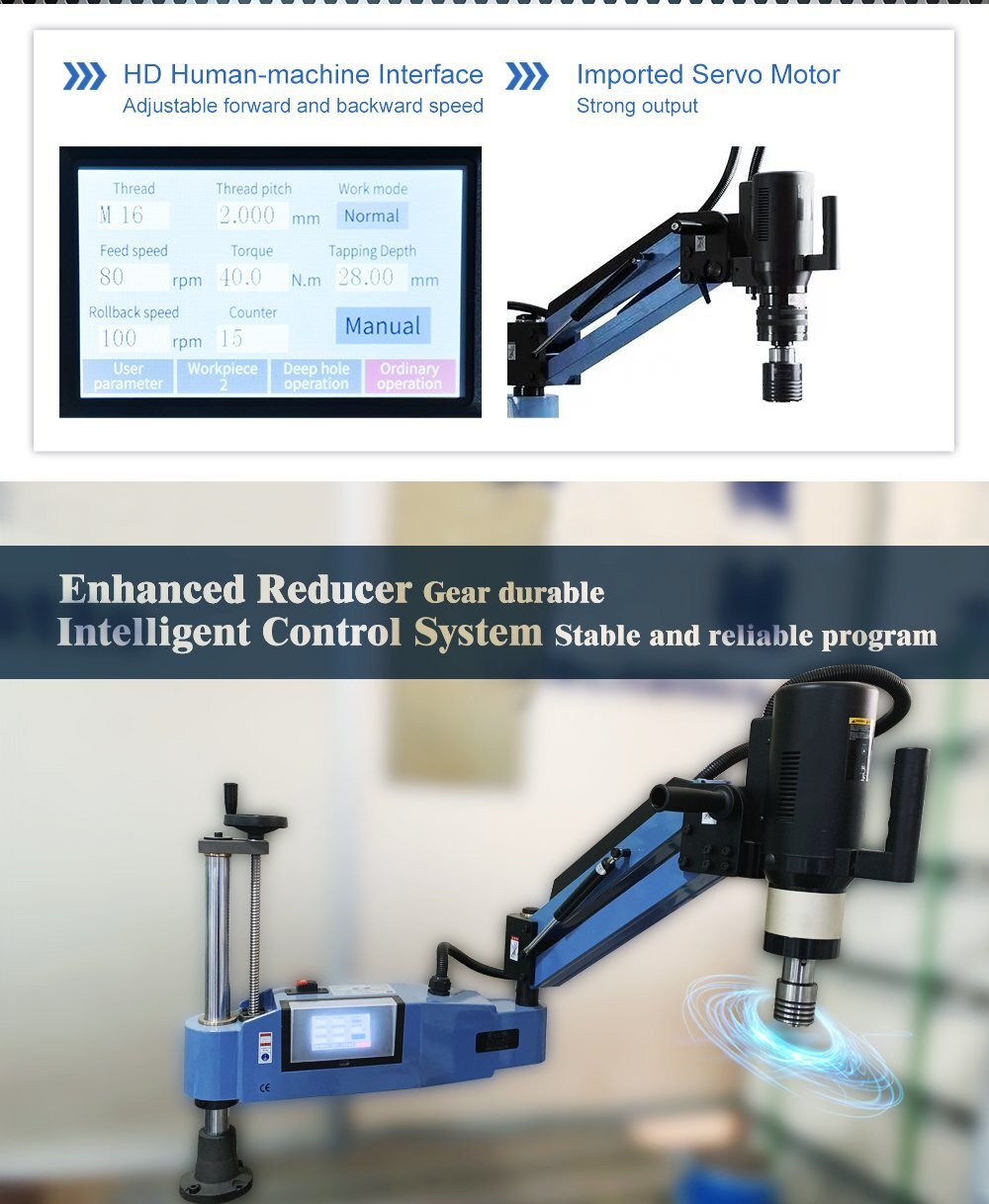

Motor speed: 50-200rpm(adjustable)
Working radius: 1250mm
Working direction: Universal
Package dimensions: 1200*1020*240mm
Package weight: 125kg(276lbs)

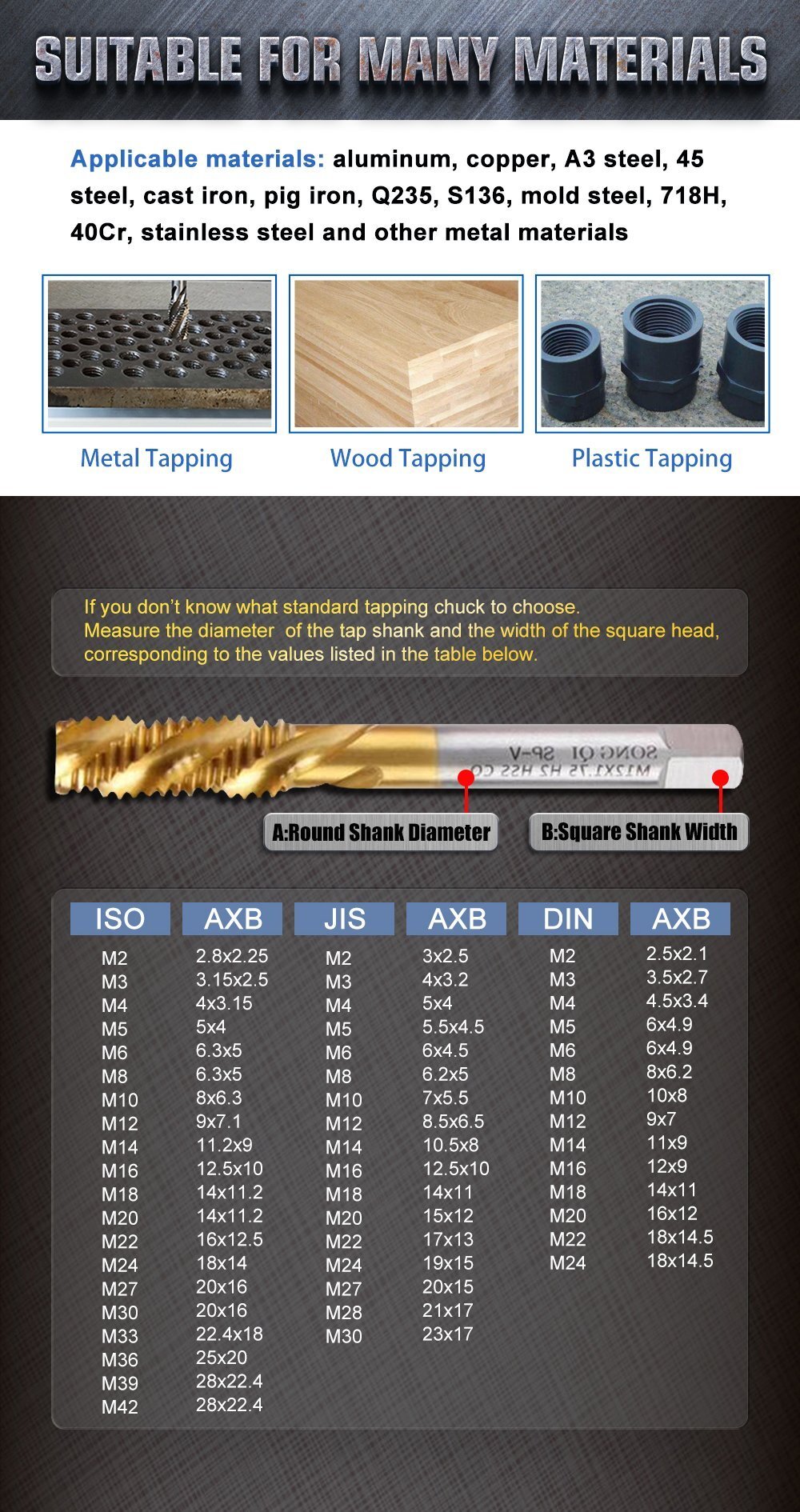

Tapping Chuck configuration:
ISO Standard: M12 M14 M16 M18-M20 M22 M24 Conversion Chuck(45-31) M27-M30 M33 M36 M40 M42 M45-M48 (13PCS)
JIS Standard: M12 M14 M16 M18 M20 M22 M24 Conversion Chuck(45-31) M27 M30 M33 M36 M40 M42 M45 M48(16PCS)
DIN Standard: M12 M14 M16 M18 M20 M22-M24 Conversion Chuck(45-31) M27 M30 M33 M36 M39-M42 M45 M48(14PCS)
Note: Optional. Select the chuck model you want before placing an order.
Warranty and Shipping:
Free shipping, and door-to-door delivery.
One-year warranty, after-sales service.
Note: the workbench is not included, you can buy it separately from the following link: Workbenck for holding electric tapping machine
