Description

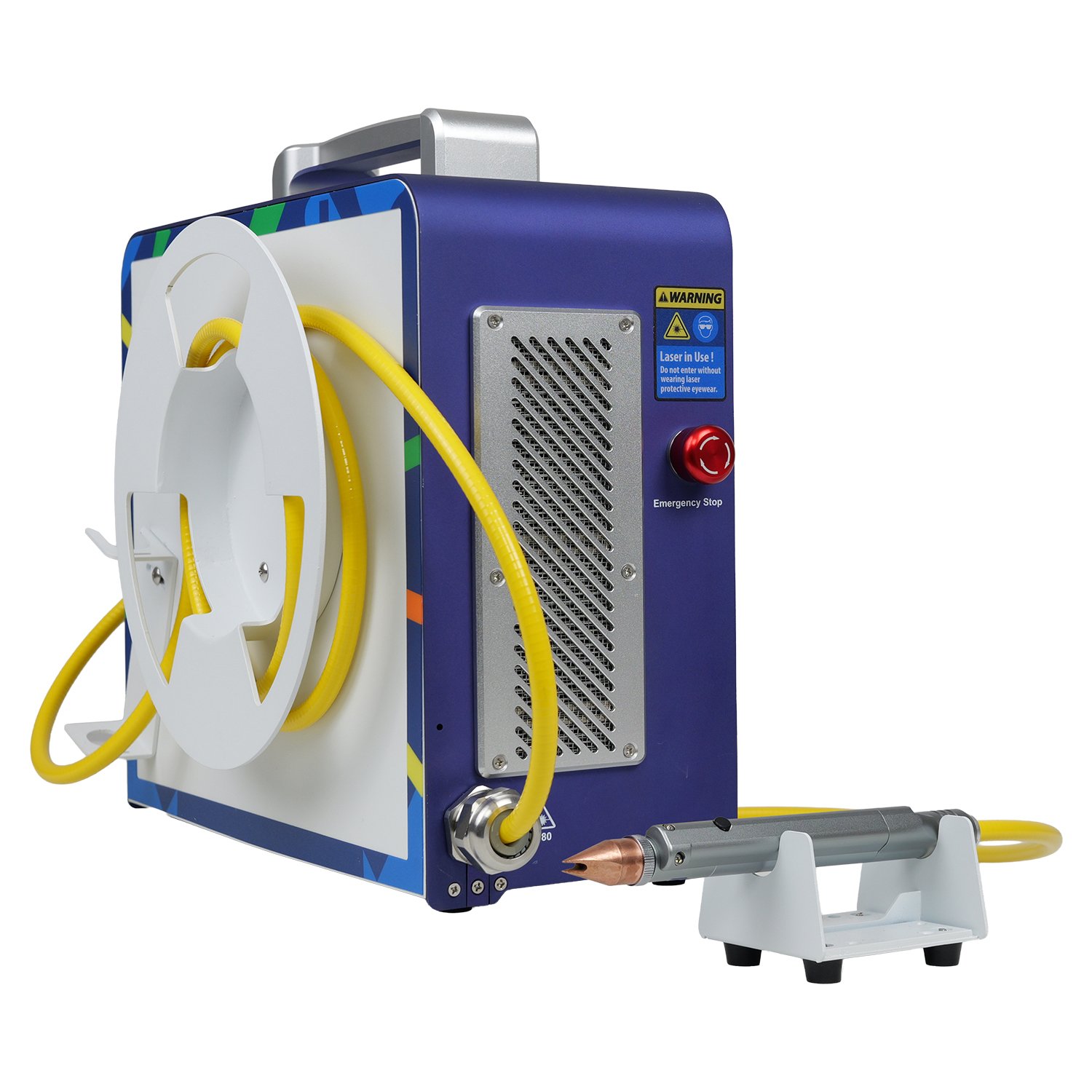

300W Portable Laser Spot Welder Product Parameters:
- Model: PLM-300
- Average and Peak Power: 300W, 600W
- Laser Wavelength: 1080±5nm
- Pulse and Modulation Frequency: 1-300Hz, 1-5000Hz
- Max Single Pulse Energy: 6J/10ms
- Output Fiber Length: 2-3m
- Core Diameter: 100µm
- Input Power: ≤2000W
- Cooling Method: Air Cooling
- Touchscreen Size: 5 inch (Laser Control System)
- Ambient Temperature: -20-55°C
- Product Dimensions: 374*191*330mm
- Product Weight: 12kg
SFX Portable Laser Spot Welder Features and Advantages:
- Ultra-thin Precision Welding: Suitable for 0.1-1.5mm thin plate welding, advertising lettering, lighting products, and DIY crafts with mark-free backside forming.
- Dual-Mode Output: Pulse / Quasi-continuous dual-mode output, meeting both high-energy spot welding and continuous micro-welding needs.
- Efficient and Time-Saving: High energy density rapid welding with a small heat-affected zone, eliminating the need for secondary grinding.
- Portable and Flexible: Handheld welding pen, 2-in-1 function for welding and cutting. Welding head weighs approximately 100g, with cutting thickness of 0.1-1.2mm.

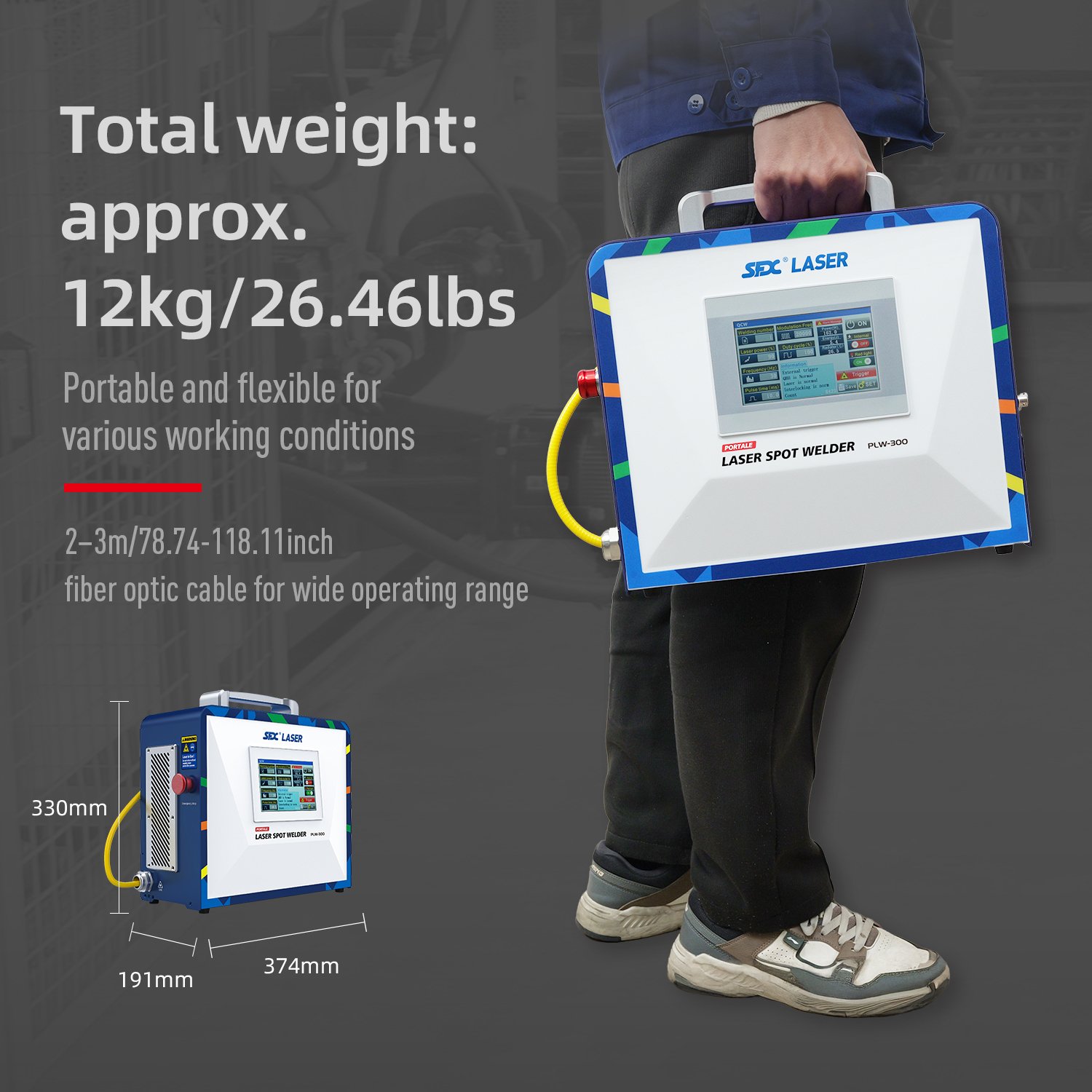

- SFX 30W portable laser spot welder total weight approx. 12kg, portable and flexible for various working conditions. 2-3mm fiber cable for wide operating range.
- 5-inch high-definition color touchscreen with intuitive interface, supports 19 custom program settings and storage. Easy to operate even with zero experience.
- High-efficient air cooling for stability and easy maintenance, low energy consumption and eco-friendly.
SFX Portable Laser Spot Welder Applications and Warranty:
- Weldable Materials: Capable of welding steel, iron, stainless steel, carbon steel, titanium, and various alloy materials. Supports welding of dissimilar metals and precision welding of thin sheets. Not suitable for high-reflectivity materials such as copper and aluminum.
- Applications: Precision splicing of thin sheet materials. Accurate welding for advertising signs and illuminated characters. Fine processing of lamp accessories and lighting structures. Welding scenarios for personalized handmade creations.
- We offer 1 year warranty for the whole machine. Lifetime online technical support and remote assistance anytime.
