Description

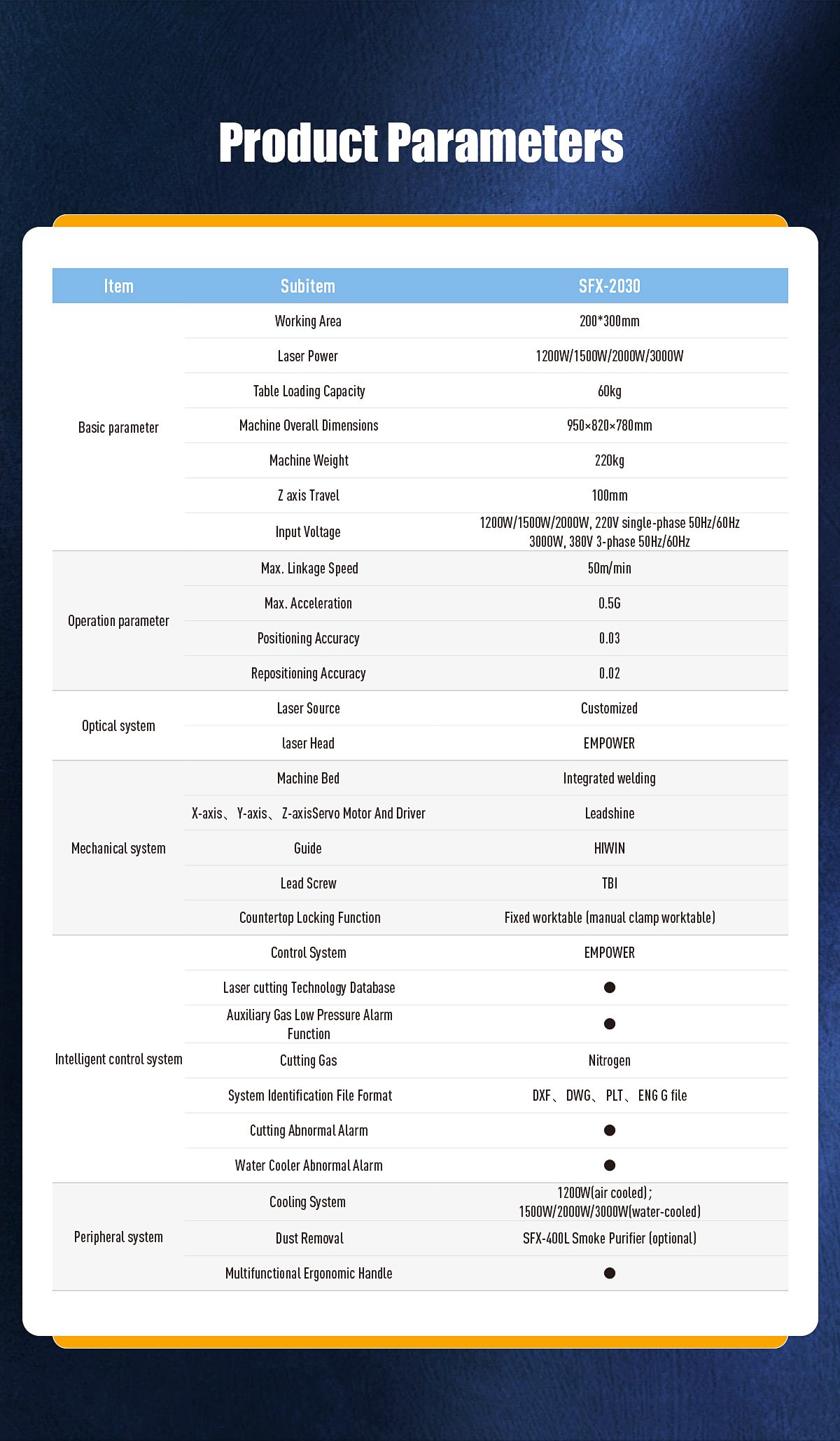

Product Parameters:
- Working Area: 200*300mm
- Laser Power Options: 1200W / 1500W / 2000W / 3000W
- Table Loading Capacity: 60kg
- Machine Dimensions: 950820780mm
- Machine Weight: 220kg
- Z Axis Travel: 100mm
- Input Voltage: 220V single-phase 50Hz/60Hz; 3000W 380V 3-phase 50Hz/60Hz
- Max. Linkage Speed: 50m/min
- Max. Acceleration: 0.5G
- Positioning Accuracy: 0.03mm
- Repositioning Accuracy: 0.02mm
- Laser Source: Customized
- Laser Head: EMPOWER
- Machine Bed: Integrated welding
- X-axis, Y-axis, Z-axis Servo Motor and Driver: Leadshine
- Guide: HIWIN
- Lead Screw: TBI
- Countertop Locking Function: Fixed worktable
- Cutting Gas: Nitrogen
- System Identification File Format: DXF, DWG, PLT, ENG, G file
- Cooling System:
- 1200W (air-cooled)
- 1500W/2000W/3000W (water-cooled)
- Dust Removal: SFX-400L Smoke Purifier
Product Features and Advantages:
- High Efficiency & Versatility: Ideal for precision metal cutting, suitable for stainless steel, carbon steel, copper, aluminum, and more, with smooth, burr-free edges.
- Advanced Anti-reflection Technology: Reduces equipment failure by 40% and allows cutting of highly reflective materials.

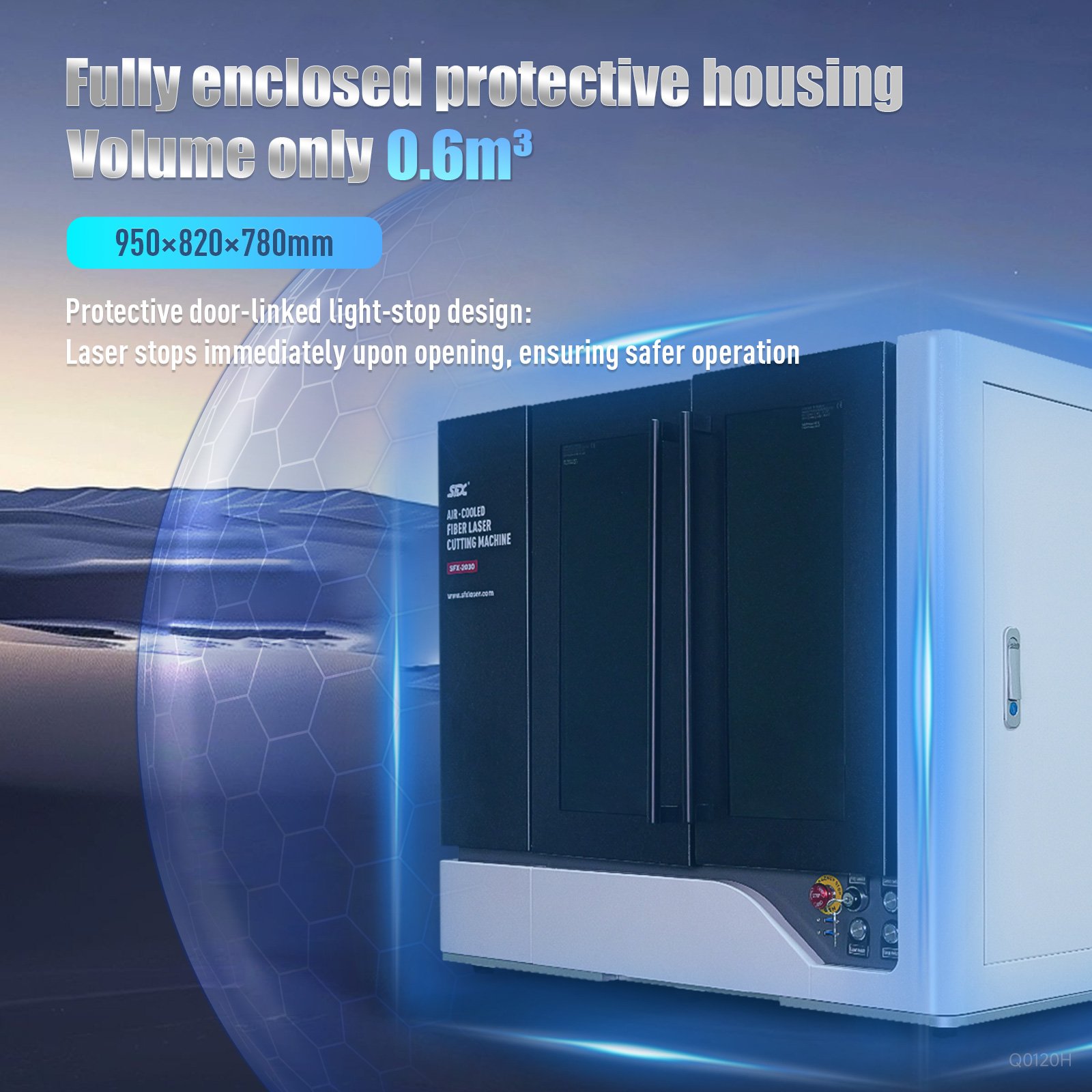

- Compact & Safe Design: Fully enclosed housing (0.6m³), protective door-linked light-stop design, and OD7+ laser protective window for safe, goggle-free operation.

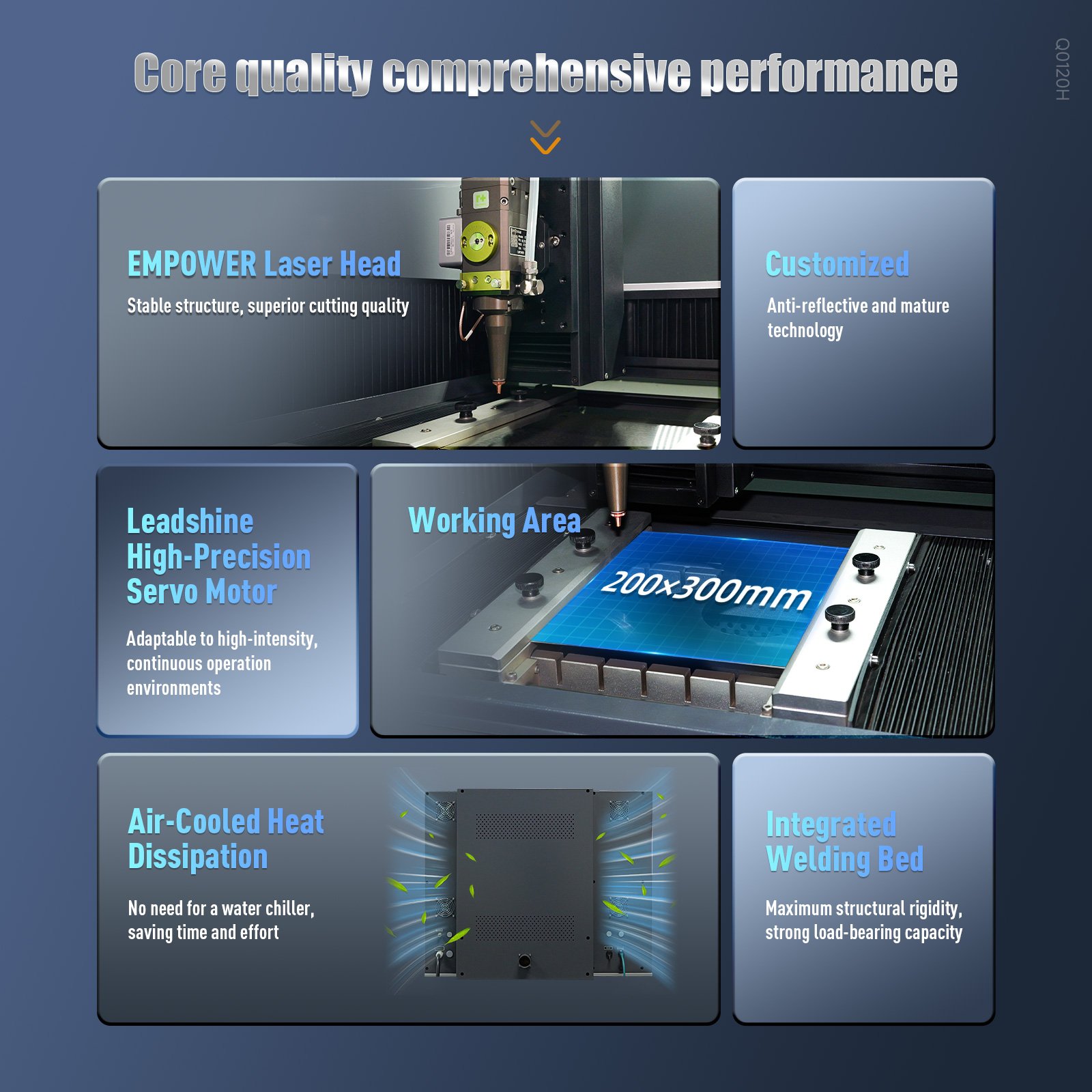

- Precision & Stability: Positioning accuracy of 0.03mm, using a servo motor system and integrated welding bed for smooth operation and high-precision cuts.
- User-friendly Control: Empower XC3000S operating system supports various file formats (G file, DXF, DWG, PLT, ENG), with options for remote or computer control.
- Status Indicator: Three-color indicator lights clearly display the equipment’s status.
Applications:
- Precision Metal Parts Cutting: Ideal for rapid cutting of precision metal components.
- Nameplates and Crafts: Perfect for engraving and cutting intricate shapes.
- Widely Used in Various Industries: Suitable for industries requiring high-precision cutting of metals.
Warranty and Service:
- Warranty: One-year warranty on the whole machine, two-year warranty on the laser source.
- Customer Service: USA and Germany local after-sales centers for support; Detailed instruction manual and guidance video; Online training with a 12-hour rapid response and professional support.
- Pre-sales Service: Free trial; Online factory video demonstration; Pre-sales professional advice.
