Description

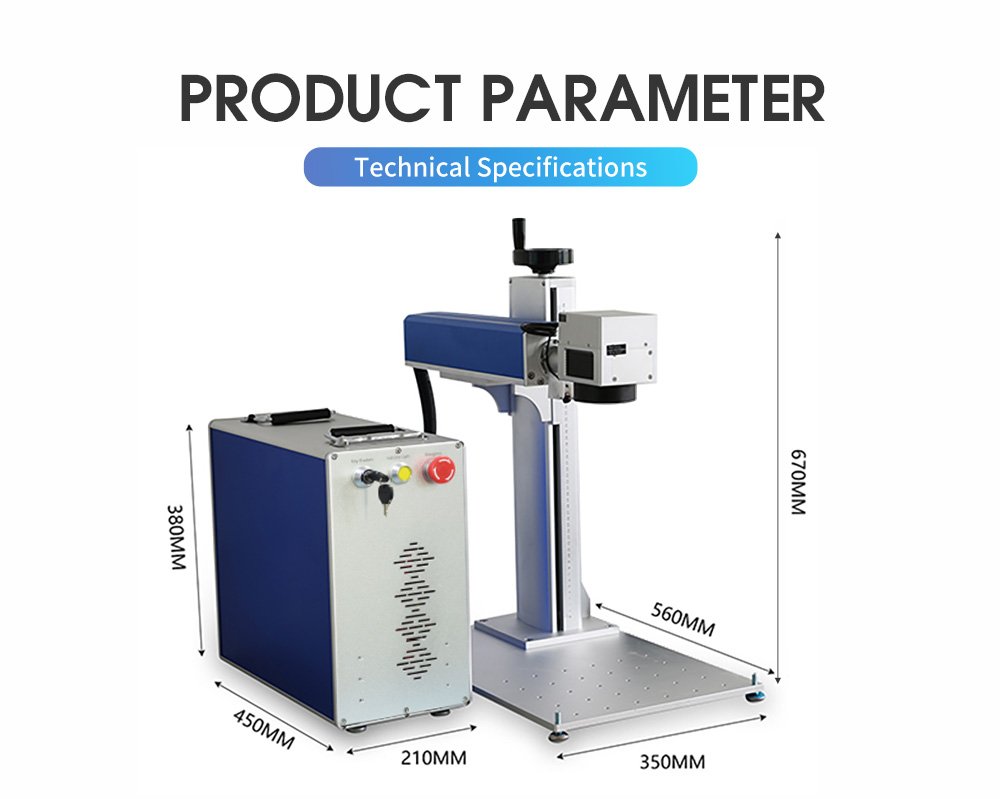

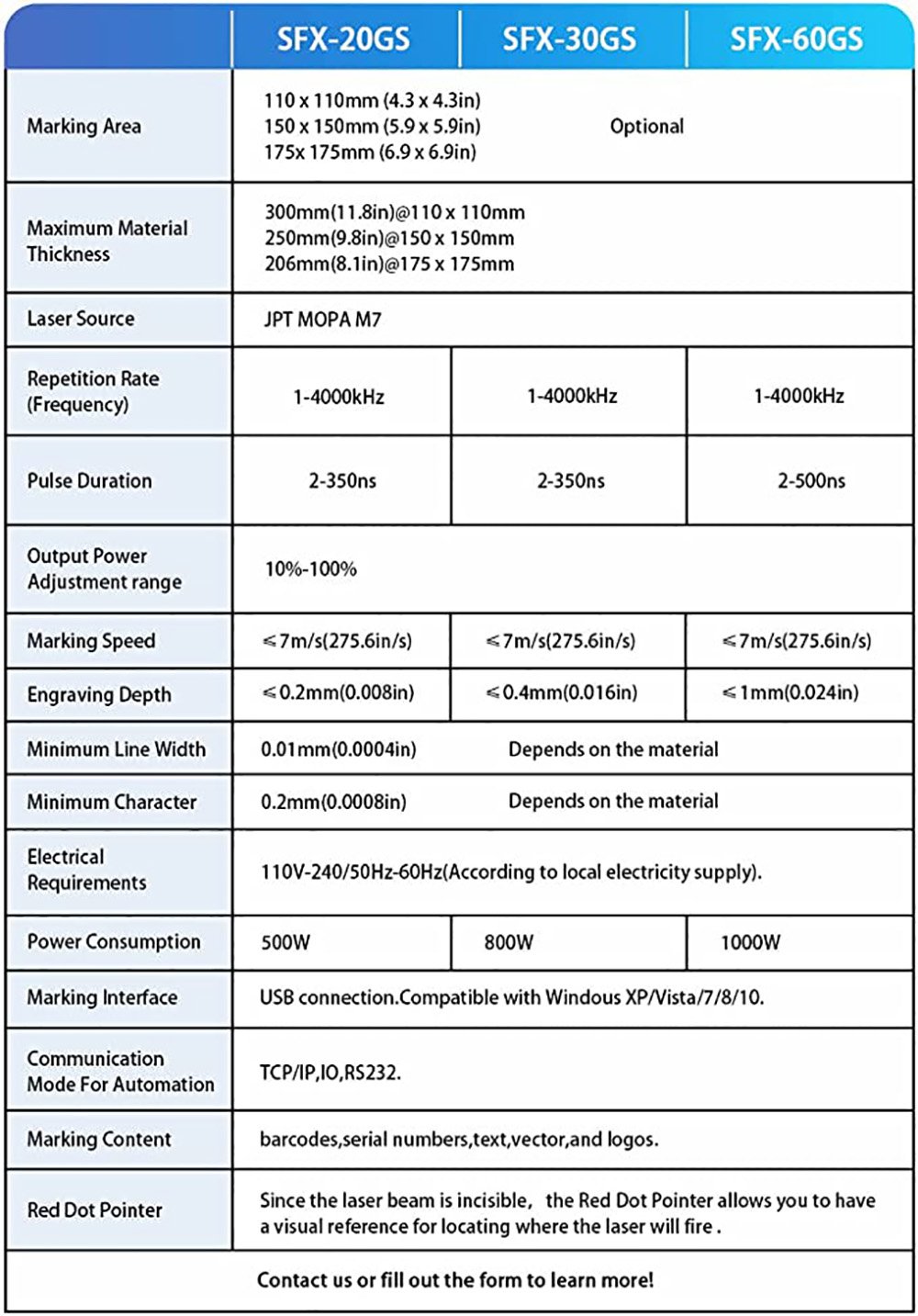

Product Parameters:
- Laser Source: 60W/100W/200W YDFLP-E2-M7-M-R JPT MOPA M7
- Adjustable Pulse Width Range : 2-500ns
- Maximum Pulse Energy:2mj(60W); 1.5mj(100W/200W)
- Marking Speed:≤7m/s(275.6in/s)
- Output Power Adjustment Range: 10%-100%
- Electrical Requirements: 110V-240V/50Hz-60Hz

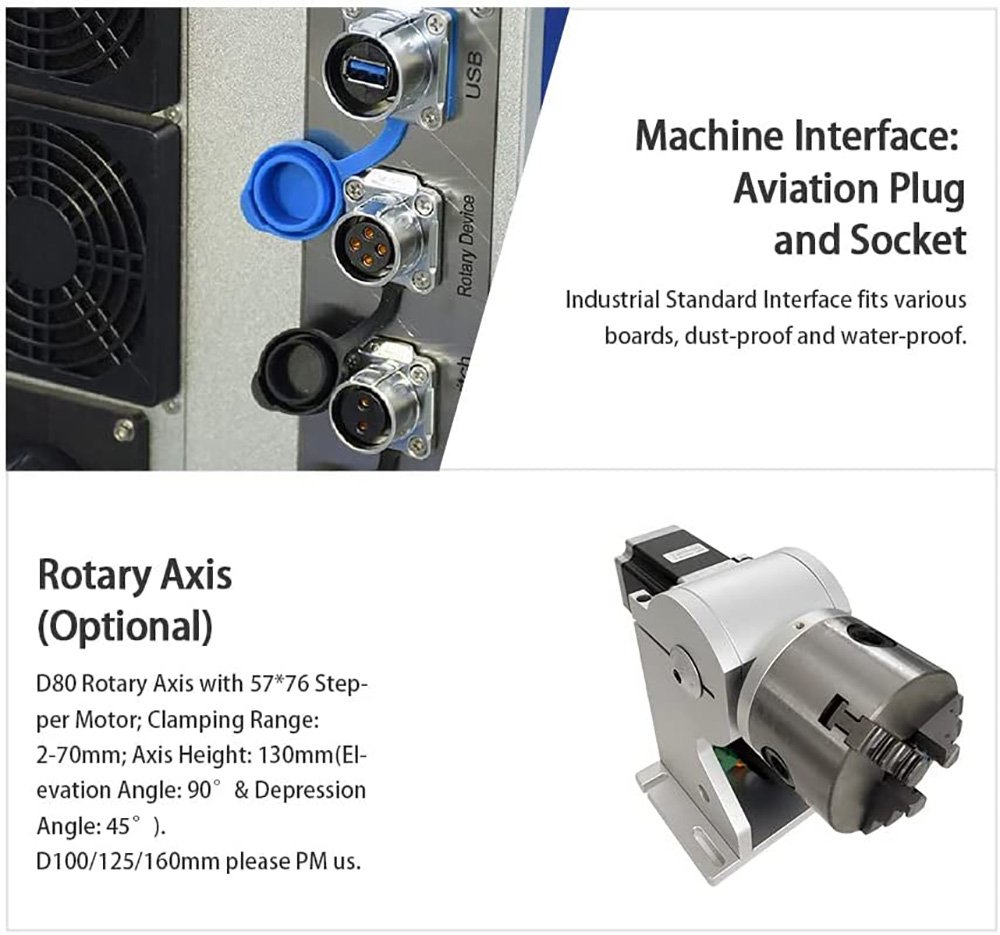

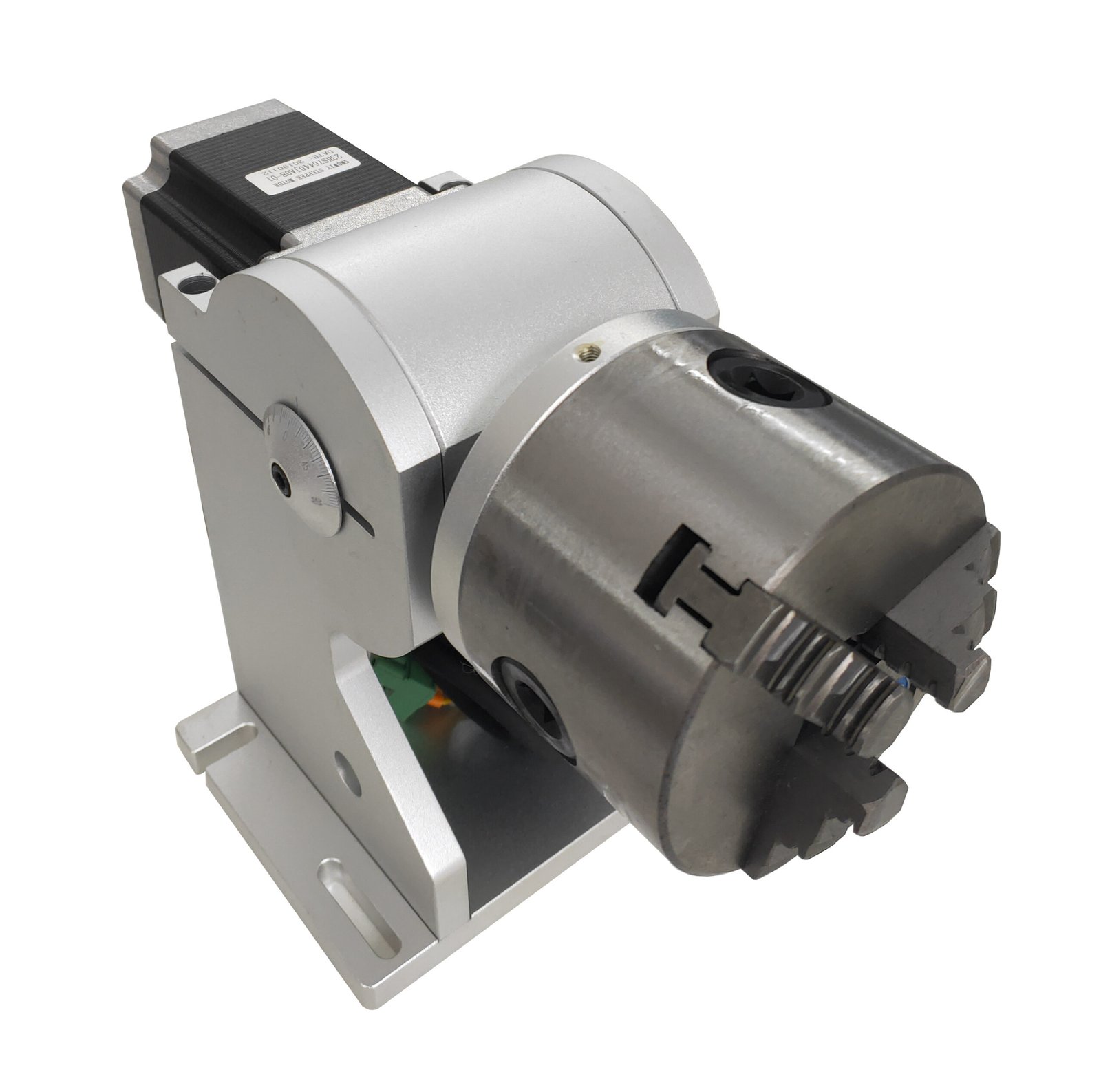

- Rotary Axis: D69/D80/D100/D125mm Optional
- Software:EZCAD2 (Lightburn Compatible) / EZCAD3
- Communication Mode for Automation: TCP/IP, IO, RS232
- Marking Content: Barcodes, Serial Numbers, Text, Vector, Logos
- Marking Interface: USB Connection. Compatible with Windows XP/Vista/7/8/10/11
- Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%

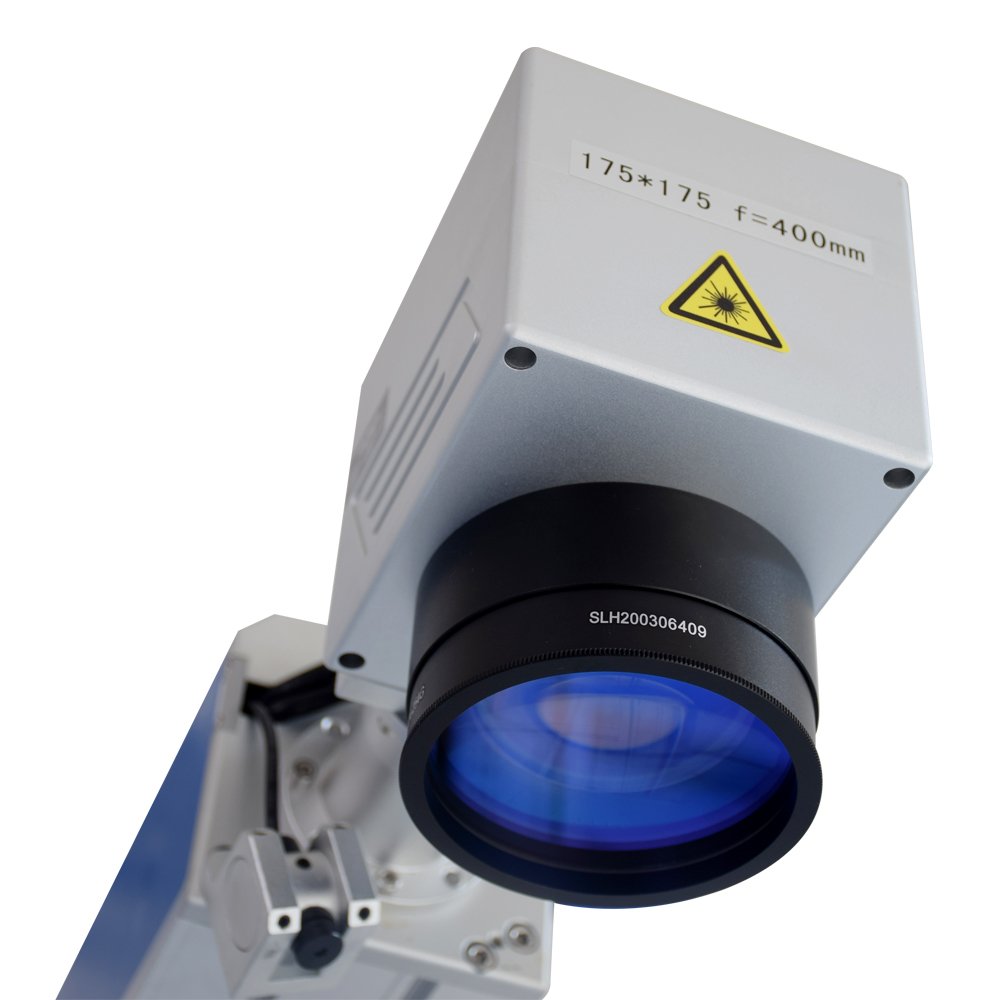

- Marking Area(Lens): 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)/175*175mm(6.9*6.9in)
- Maximum Material Thickness: 110*110mm:300mm(11.8in)/150*150mm:250mm(9.8in)/175*175mm:206mm(8.1in)
Features and Advantages:
- Long Lifespan, Free Maintenance and Low Cost.
- Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF Fonts.
- Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode, QR Code, Automatic Jump Number, etc Supported.

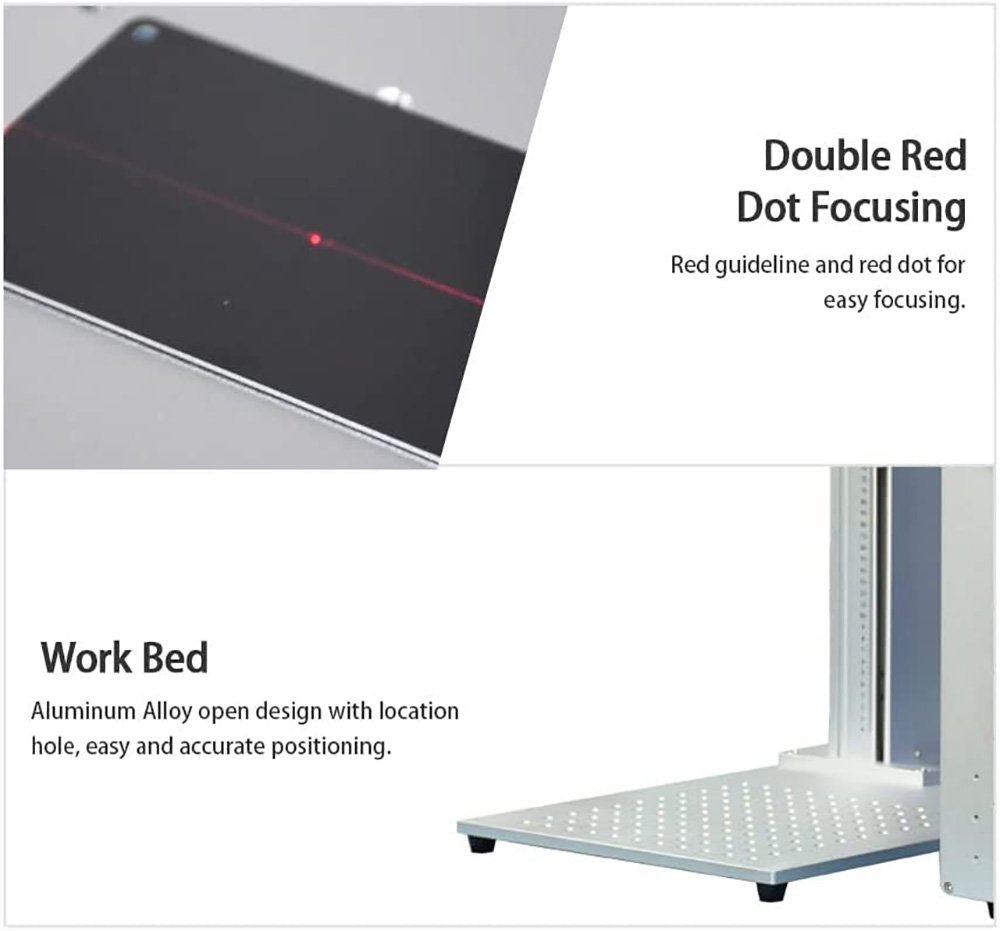

- Double Red Dot Focusing: Red Guideline and Red Dot for Easy Focusing.
- Red Dot Pointer: Since the laser beam is invisible, the red dot pointer allows you to have a visual reference for locating where the laser will fire.

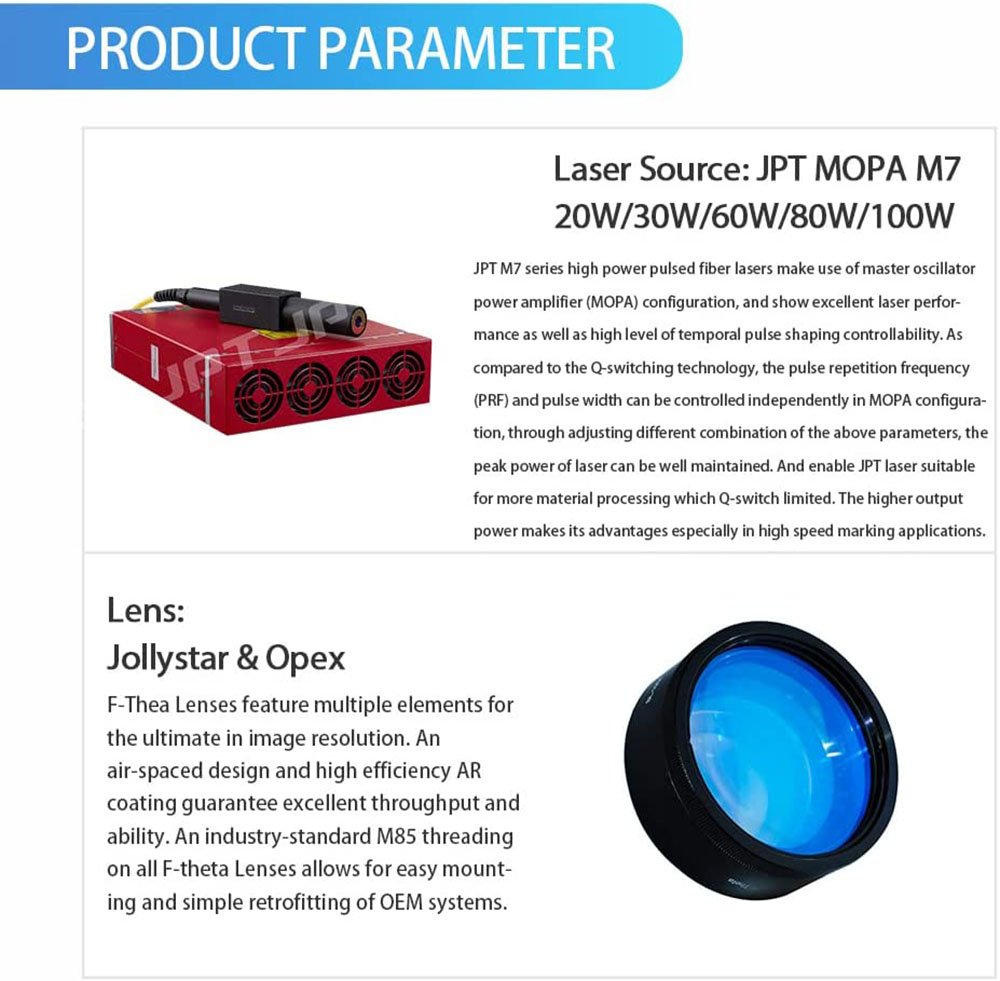

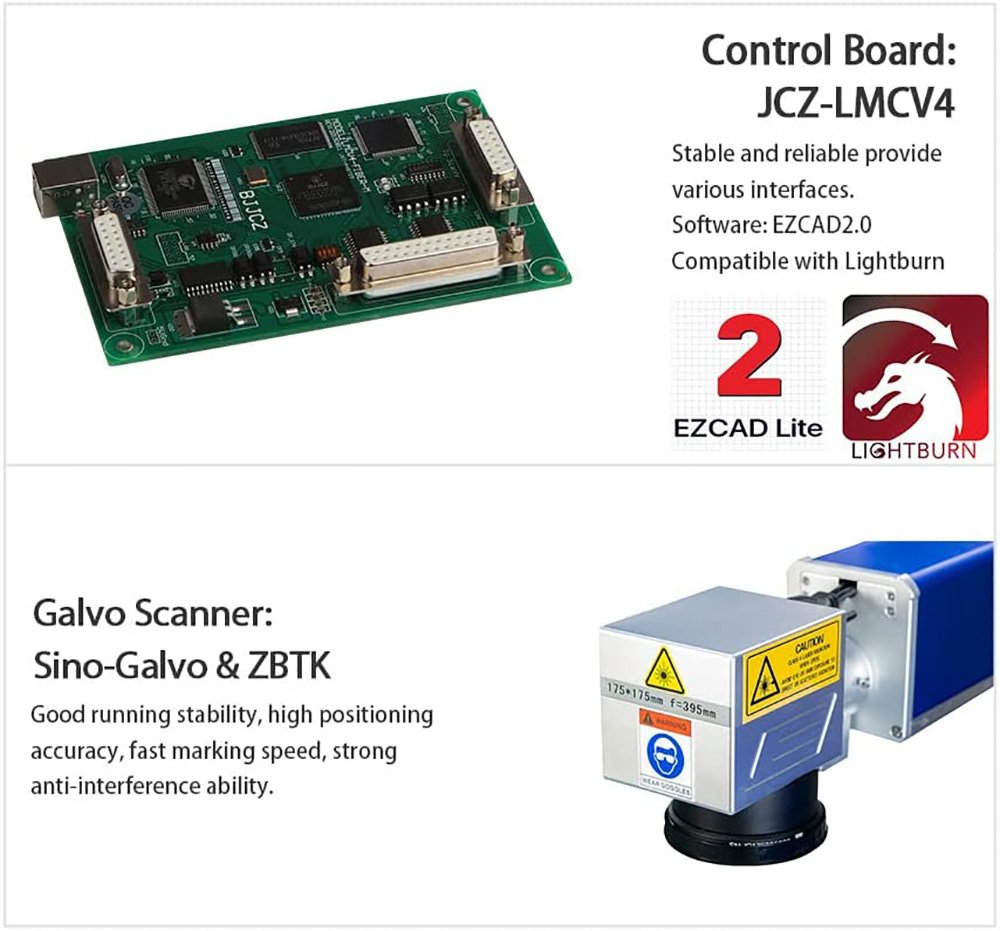

- High Quality Machine Parts: JPT MOPA M7 Laser Source, Jollystar & Opex F-Thea Len, JCZ-LMCV4 Control Board, Sino-Galvo Scanner.

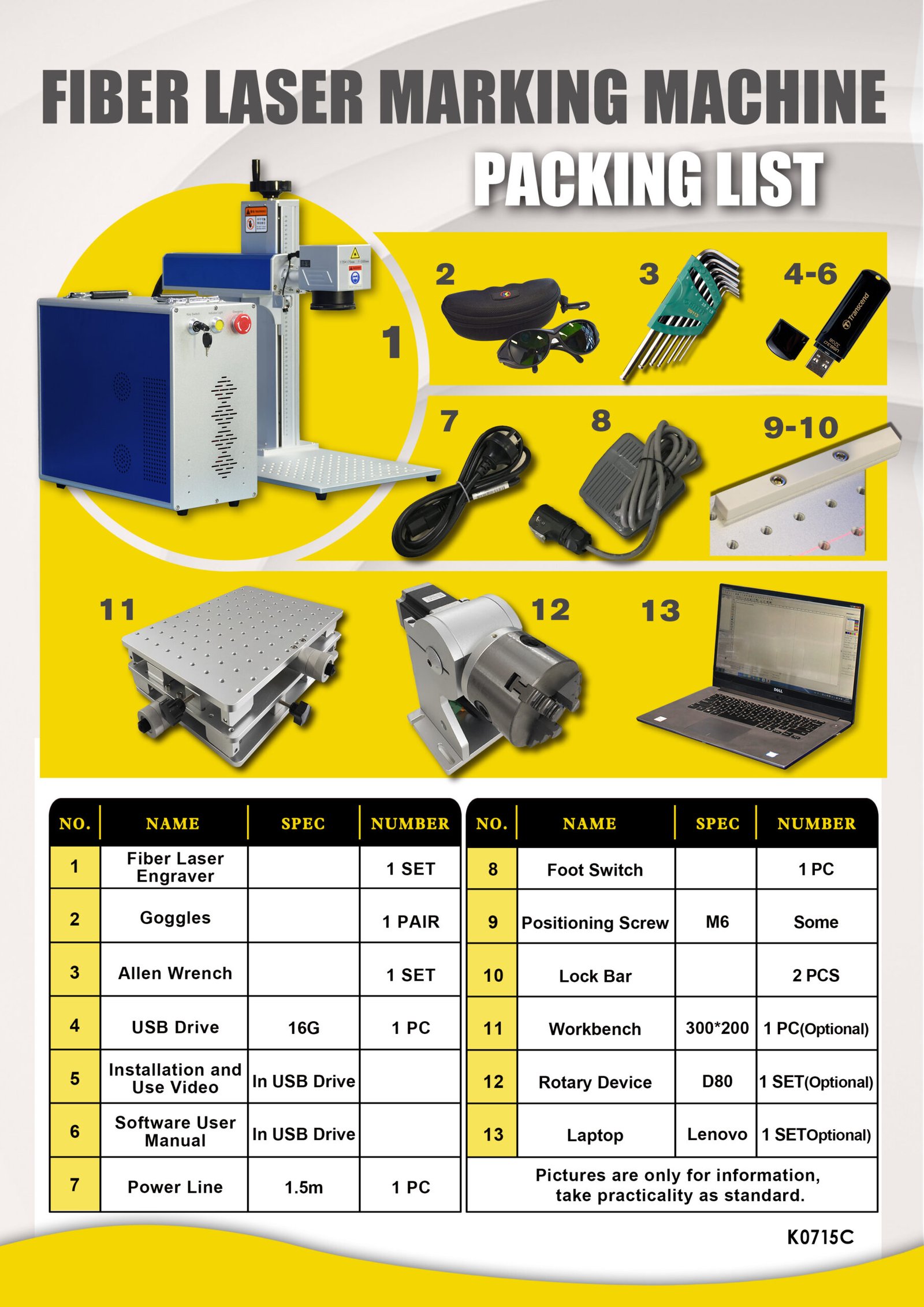

- Easy Operation, English User Manual, VCD Training Video, Software Sending Together with the Machine. ISO, CE & FDA Certificate.
Application and Service:
- Applicable Material: Aluminum, Stainless Steel, Brass, Copper, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES, etc.
- Applicable Industry: Hardware Industry, Wrenches, Measuring Tools, Sanitary Ware, Stainless Steel, Medical Equipment, Luggage, Gifts, Table Bottom, Glasses Frames, Instruments.
- Application Advantages: Metal Surface Processing, Peeling Coating; Anodized Aluminum Black Marking; Semi-conductor & Electronics Industry Applications; Large Area Engraving; Excellent Marking Effect on Plastic or Other Sensitive Material; Color Marking on Stainless Steel.
- No Import Duty+Free shipping by DHL/UPS around 5 to 7 days to your Door.
- 2 Years Warranty. After Sales Center in NY, US. Offer Remote Assistance for Operation Issues. Offer Lifetime Online Technical Support.
- We also have 20W 30W 50W JPT LP-E Fiber Laser Engraver，YDFLP-M7-M-R MOPA M7 Fiber Laser Engraver (MOPA C Series) and Laser Marker Accessories for Optional.
